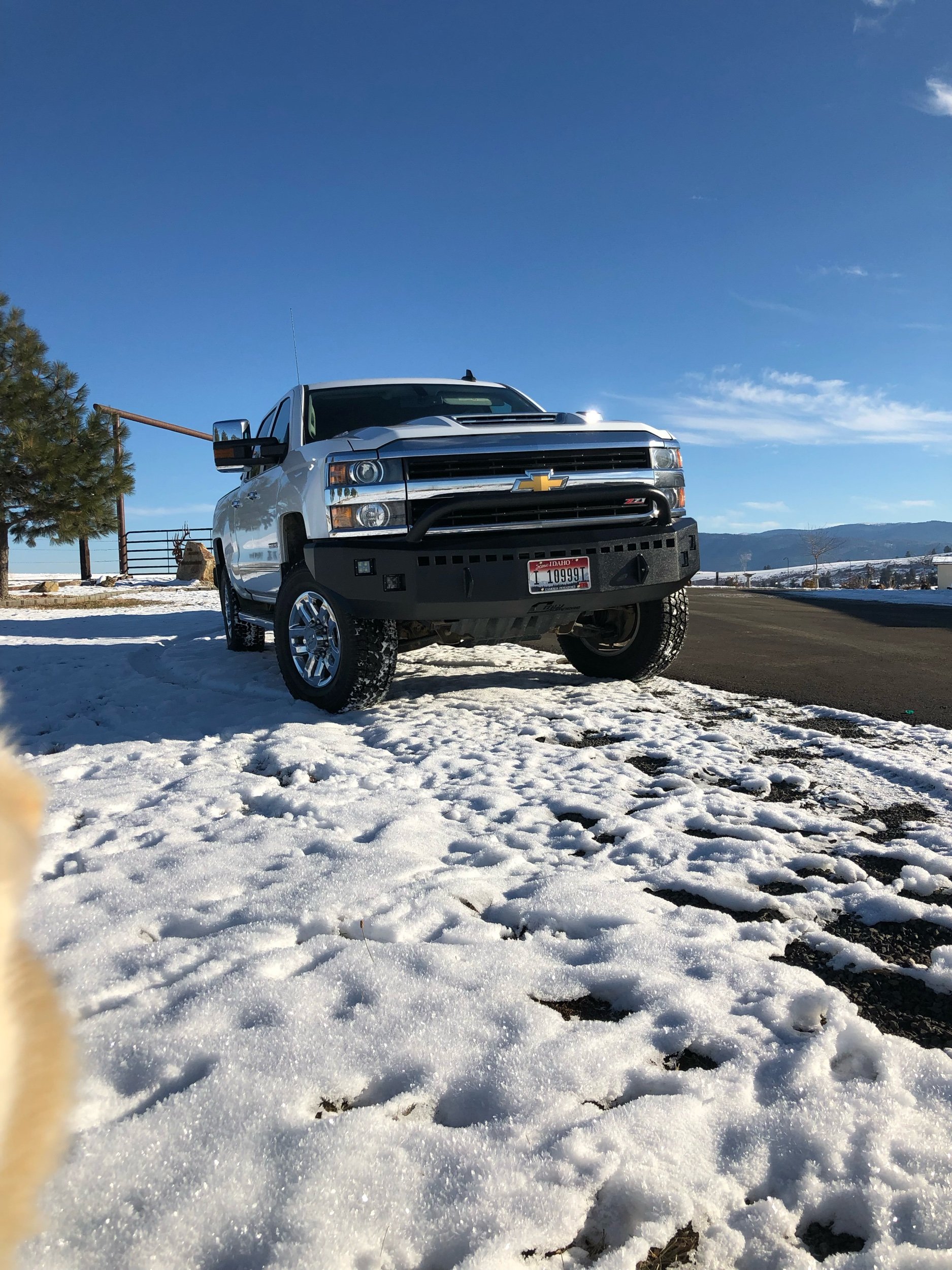

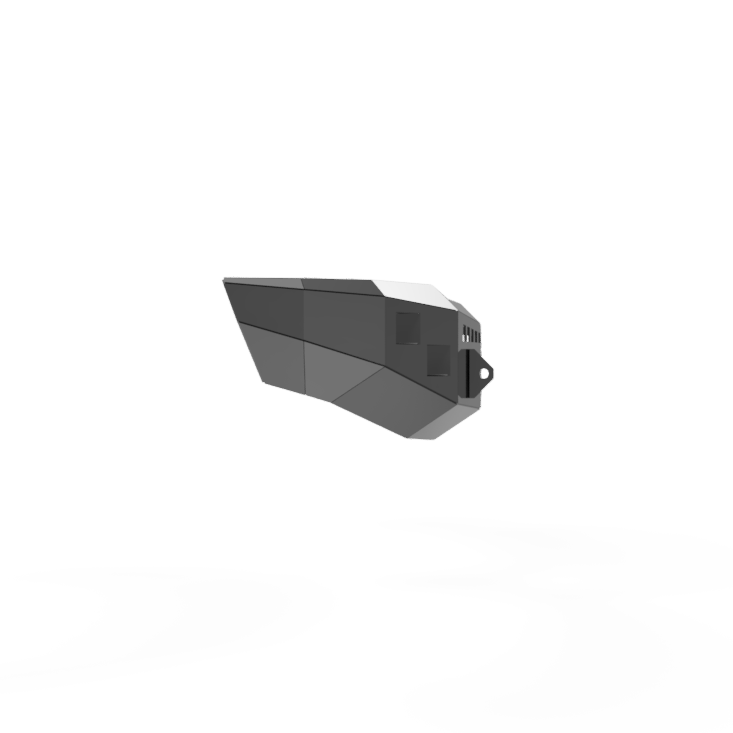

Chevy Front 15-19 (2500/3500) .dxf files only

$65.00

Cut ready, individual part .dxf files. Can be cut on smaller plasma tables. Organized and well named .zip folder download upon purchase . Assembly is pretty straight forward, with your included center profile jig .dxf, that you will use to start your “1,2,3,4” Center panels

Any bending required, has a relief cut, so no press brake is needed.

3/16” Recommended

Make as many as you want.

Files are not for resale. (Unauthorized sales of files will be pursued)

Add To Cart

Cut ready, individual part .dxf files. Can be cut on smaller plasma tables. Organized and well named .zip folder download upon purchase . Assembly is pretty straight forward, with your included center profile jig .dxf, that you will use to start your “1,2,3,4” Center panels

Any bending required, has a relief cut, so no press brake is needed.

3/16” Recommended

Make as many as you want.

Files are not for resale. (Unauthorized sales of files will be pursued)

Cut ready, individual part .dxf files. Can be cut on smaller plasma tables. Organized and well named .zip folder download upon purchase . Assembly is pretty straight forward, with your included center profile jig .dxf, that you will use to start your “1,2,3,4” Center panels

Any bending required, has a relief cut, so no press brake is needed.

3/16” Recommended

Make as many as you want.

Files are not for resale. (Unauthorized sales of files will be pursued)

Extract files from included .zip folder. Part naming system should explain itself in your nesting software.

  1. Any parts numbered “1,2,3,4” are your center panels, that you will build your bumper out from. Only cut 1 of each of these.

  2. Any parts labeled by a number, followed by a letter, such as but not limited to “1a, 3c, 4a” means it should be cut twice. One part for each side.
