4'x6'x1/4" Fab Table (.dxf files only)

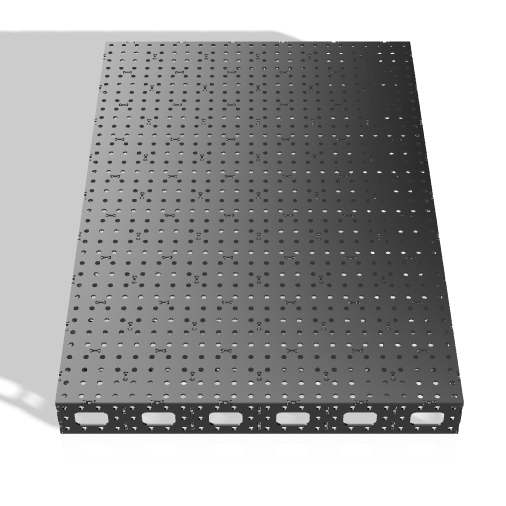

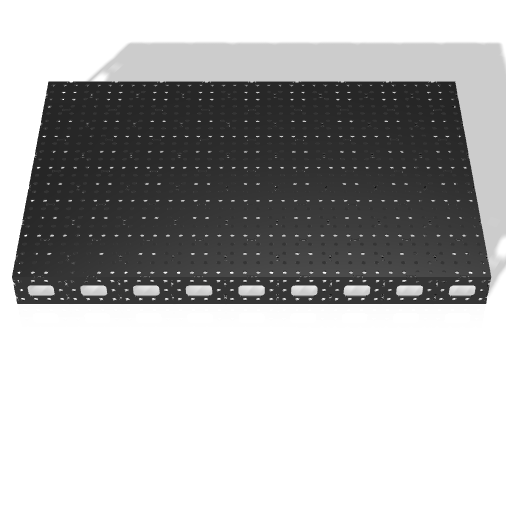

4x6 Fab/ Jig Table
1/4” construction
2” centers for 5/8” holes
Tab and Slot design allows for easy construction
Ribs on 8” centers vs other tables with 12” rib centers, which means a stronger table
Uses 2-5x10’ sheets and 1-20’ stick of 2'“x2” or 3”x3” square tubing. Thickness of your choice. 3/16” min. thickness recommended. Nest example in pictures.
16 1/2” Cairrage bolts and 16 1/2” nuts for leg bolts.
Bolt on table pad leg .dxf’s included. Slotted for ease of centering pad bases.
